Overview
Network Scanner to maximize business efficiency
With the functionality of many devices, yet the simplicity of one, the ScanSnap N1800 network scanner contains the qualities organizations of all sizes desire to improve business processes.
Ideal for Small and Medium Business
- Space saving design
- Multifunction functionality to reduce hardware costs
- Local user accounts
- Quiet operation
- Loaded with intelligent scanning features
- Outstanding price/performance
General office functionality
- Fast scanning speeds of 20 pages per minute and true double-sided speeds of 40 images per minute in color, grayscale or monochrome @ 300 dpi
- 50 page document feeder

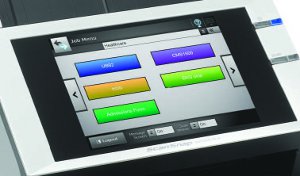

- Large 8.4” touch screen high resolution (1,024 x 768) display

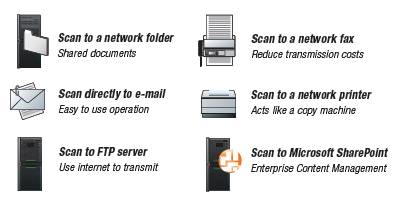

- Scan to e-mail, folder/FTP, network fax or printer or Microsoft SharePoint Server Enterprise features
*Limited version support for SharePoint* - Scanner Central Admin Server software
- Job Menu’s based on individual user login to control scanning settings and destination(s)
- High security to assist with compliance and regulation
- SDK and optional third-party applications for integration with line of business systems
Features
Intelligent scanning
- Loaded with many features to automatically create excellent image quality without rescanning
- Automatic page size detection and deskew
- Automatic page rotation, auto color detection, auto blank page removal
- Intelligent scanning features enabled by default
- No need to sacrifice speed when using intelligent scanning features unlike many competitors
- Ultrasonic multi-feed detection
Job Menus and Job Buttons
- One button scanning
- Multiple destinations
- Customize based on login
- Color dropout forms
- Message screen
- Pre-determined scanner settings
- Control user operation
- Ideal for vertical markets
- Long document profile
- Add-In integration support

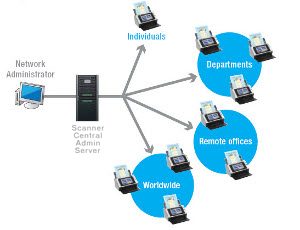

Centralized Management
- Easy deployment and effective device management
- Maintain of fleet of scanners with ease from any workstation
- Create customized groups of scanner settings based on location or work requirements
- Settings stored centrally allows for new scanners to inherit settings in minutes

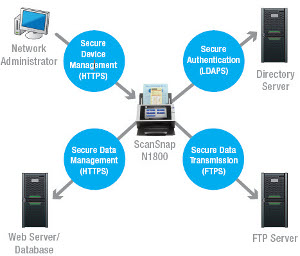

Enhanced Security
- High security to assist with adherence to regulatory or compliance standards
- Support for SSL protocols for secure authentication, management and transmission
- No external USB
- Secure disk swiping
- Install certificates
- Data encryption
- SMTP authentication
Integration
- Optional Third-Party Applications provide additional integration capabilities
- Ability to support six applications per N1800
- Capabilities include adding metadata, document separation, bar code recognition, scan to workflow, ECM/ERP connectivity, touch screen indexing, database lookups, vertical market applications, bill back coding, Fax Server address list lookups, document routing
- Connectivity to cloud services, hosted applications and software as a service providers
Specifications
| Model | N1800 | ||
|---|---|---|---|
| Functional Specifications | |||
| Image Sensor Type | Dual Color Charge coupled device (CCD) image sensors | ||
| Resolution | 150, 200, 300, 600 dpi | ||
| Color | 24-bit single pass color, auto color detection | ||
| Scanning speed | Color | Simplex: 20 ppm (200 dpi, 300 dpi), Duplex: 40 ipm (200 dpi, 300 dpi) |
|
| Grayscale | |||
| Monochrome | |||
| Scanning Mode | Color, monochrome, grayscale, auto color detection | ||
| Image Adjustments | Brightness, contrast, dropout color, sharpness background removal | ||
| Document Feeding Mode | Automatic document feeder (ADF) | ||
| ADF Capacity | 50 Sheets (Letter/A4, 80 g/㎡ or 20 lb.) (Active loadable ADF) | ||
| Document Size | ADF Minimum | A8 Portrait (52 mm x 74 mm) or 2 in. x 3 in. | |
| ADF Maximum | Legal (8.5 in. x 14 in.) | ||
| Network Protocols | TCP/IP DHCP, SMTP, SMB, LDAP, NTP, FTP and HTTP | ||
| Scanner Central Admin Server | Windows® 2003 R2, 2008, 2008 R2, 2012, 2012 R2 Server required | ||
| Network Server Authentication | Windows® 2003, 2003 R2, 2008, 2008 R2, 2012, 2012 R2 Server or open LDAP | ||
| Output Methods | TIFF, MTIFF, JPEG, PDF, searchable PDF's (English) | ||
| Interface | One network connection RJ45 10 BASE-T, 100 BASE-TX | ||
| Software Driver Support | All software loaded on system (embedded) | ||
| Physical Specifications | |||
| Power Requirements | 100 to 240 VAC, 50/60 Hz | ||
| Power Consumption | 50 W or less, Energy saving mode: 15 W or less | ||
| Operating Environment | Temperature | 5 to 35° C (41 to 95° F) | |
| Relative Humidity | 20 % to 80 % (non-condensing) | ||

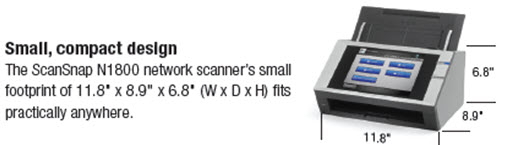

| Dimensions (WxDxH) | 300 mm x 226 mm x 172 mm (11.8 in. x 8.9 in. x 6.8 in.) | ||
| Weight | 6 kg (13.23 lb) | ||
| Environmental Compatibility | RoHS | ||
| Automatic Image Processing | Auto deskew, auto orientation, auto page size detection and blank page detection, color detection | ||
| Security | LDAP, LDAPS, FTPS, HTTPS | ||
| Touch Panel | Screen size | 8.4 in. XGA (1,024 pixel x 768 pixel) TFT color monitor | |
| Type | Analog resistive touch display | ||
| Keyboard | Software keyboard | ||
| Inbox Contents | ADF paper chute, AC cable, AC adapter, LAN cable (straight-through), Carrier Sheet, Getting started | ||
| Features | Ultrasonic multi-feed detection, marker indexing via highlight pen, long document scanning and searchable and password protected PDF | ||
